Rope

Material

SBR
CSM

Handrail

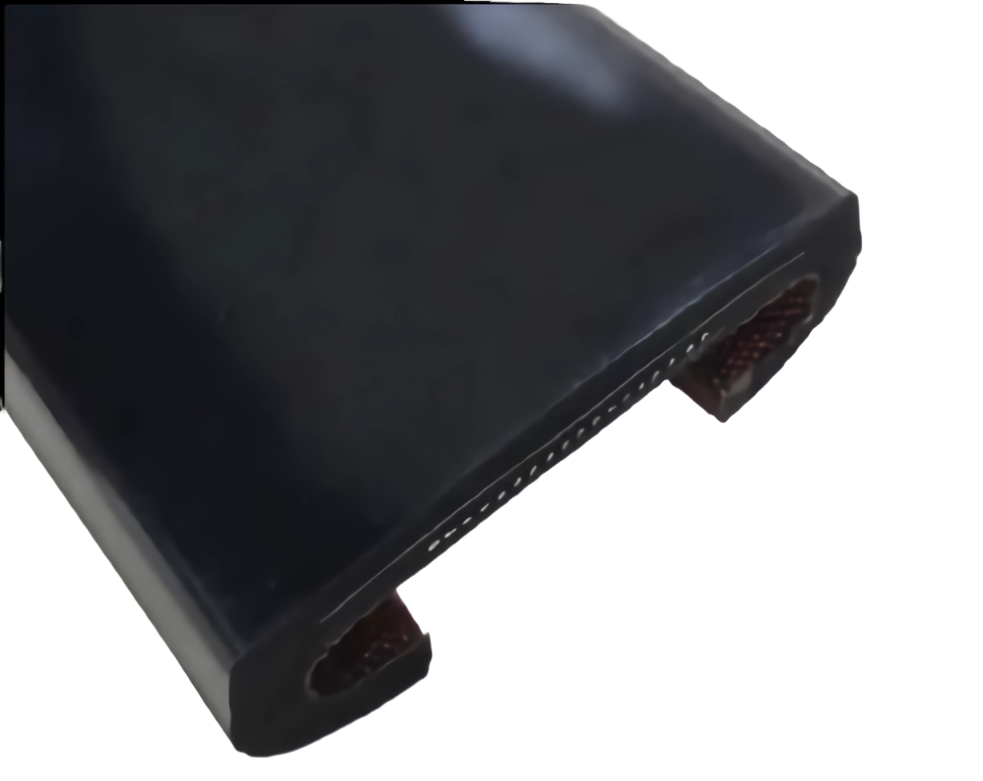

  • SBR

Main component: styrene butadience rubber

SBR has the following advantages over natural rubber

-High temperature resistance

-Oil rub resistance

-Ageing resistance

-Abrasion resistance

-Hardness is stable after vulcanization

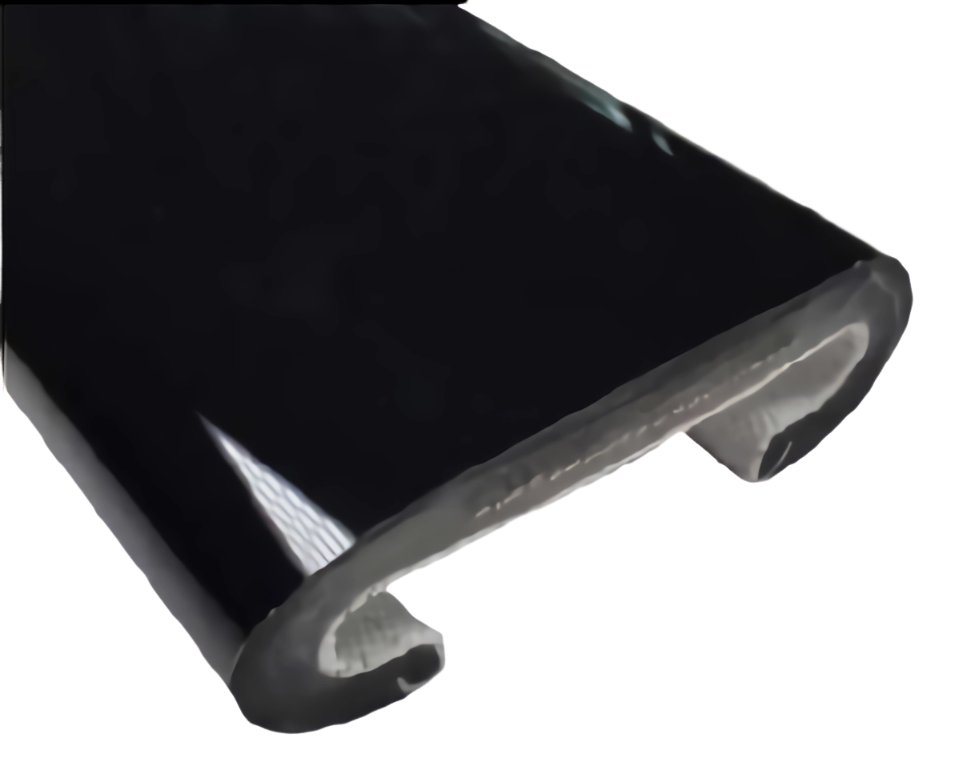

  • CSM

Main component: chlorosulfonated polyethylene rubber

High performance protection for the following conditions

-Ultraviolet ray

-Ozone

-High temperature

-Sunlight

-Fire resistance

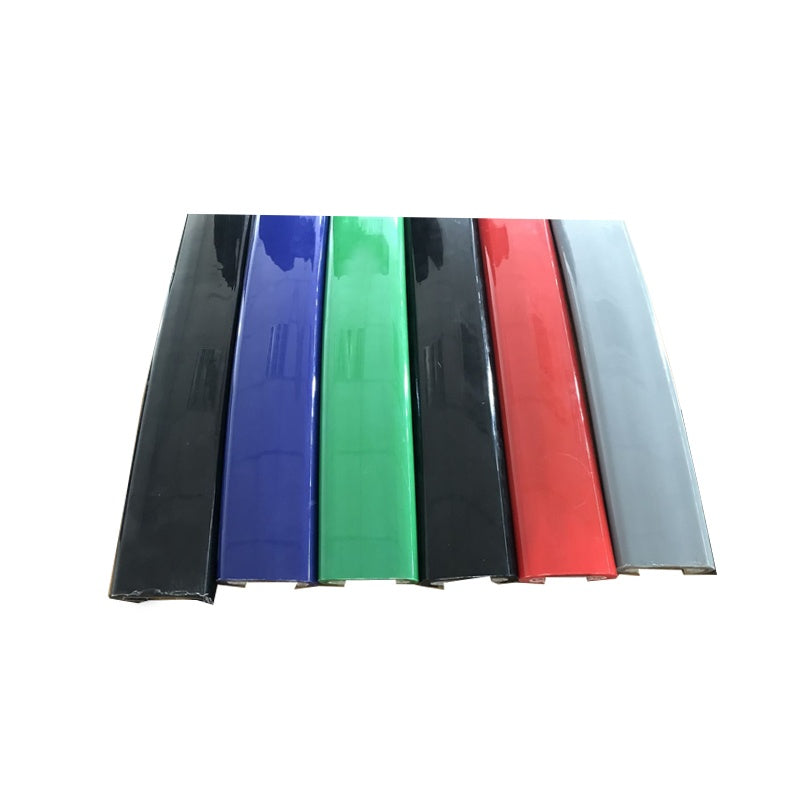

Colors

Tips

If you want to get correct handrail, please provide us with information as below:

  1. Your escalator brand
  2. Your handrail type(please refer to our catalog)
  3. Length in millimeter(please be accurate)
  4. Color you required
  5. Indoor use or outdoor use

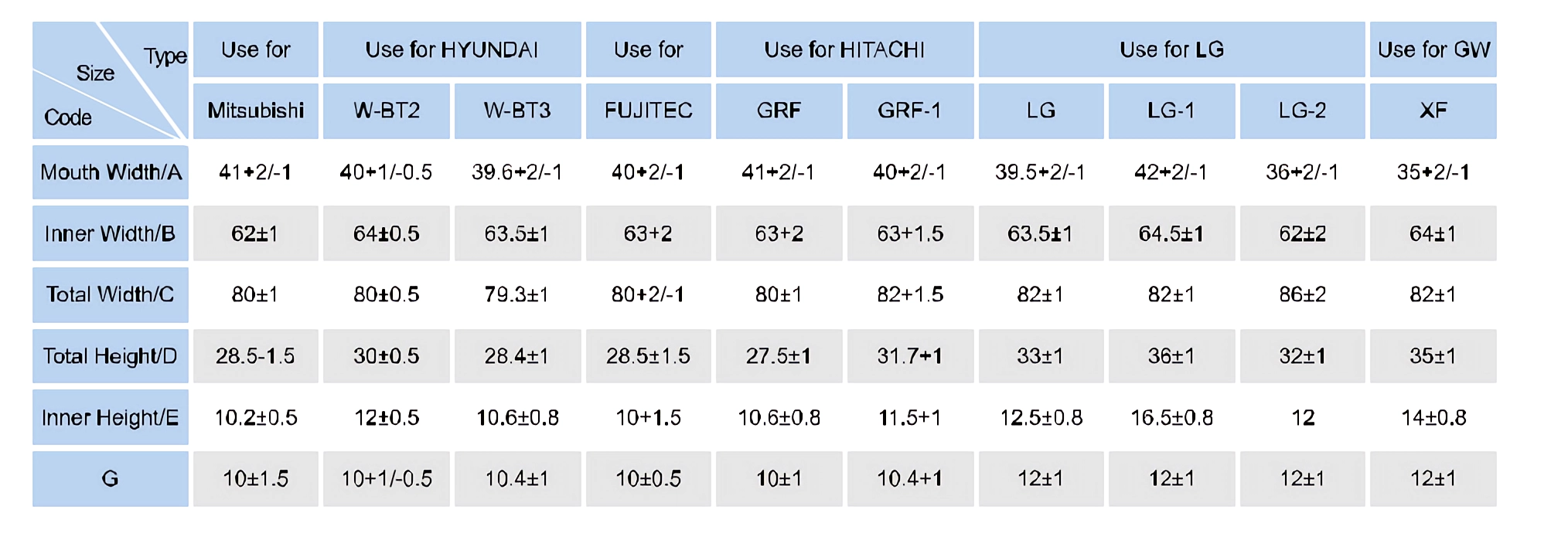

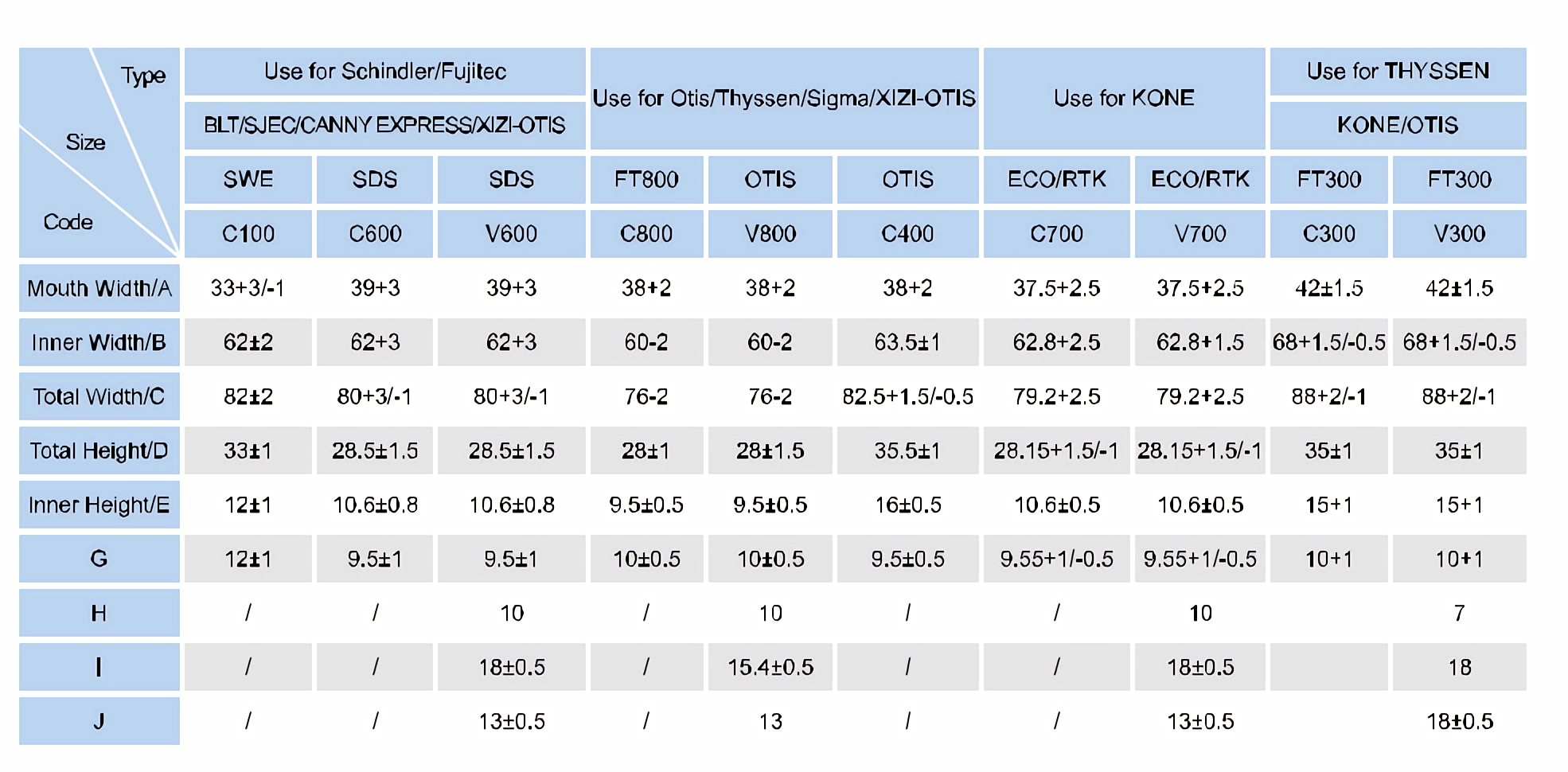

Model Specification

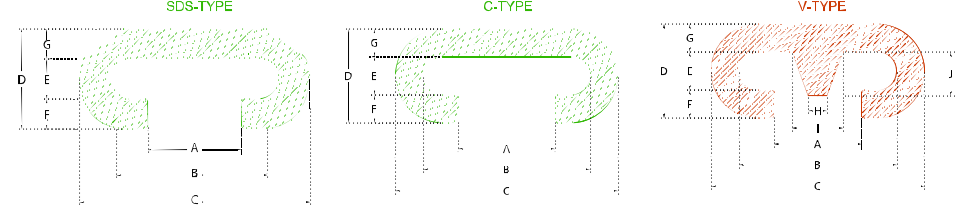

The following cross-sectional diagrams and tables can provide references for choosing suitable handrails (C-type or V-type) for your escalators or moving walkways. A fitted handrail will perform a proper function on escalator's/moving walkway's running. Myescalator can offer you handrails with a wealth of colors for indoors or outdoors use. Customized handrails please contact with us.
